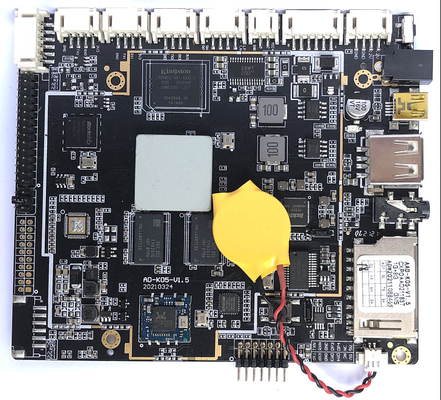

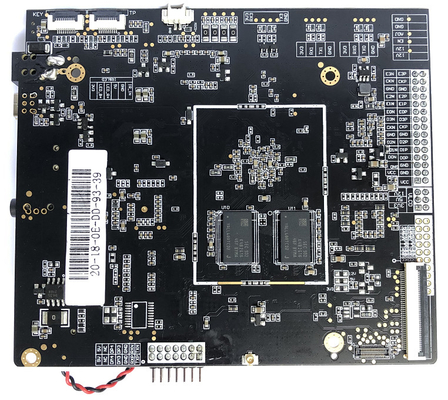

Rockchip PX30 Motherboard Android 8 Industrial Board
Why choose us
1.We are a professional indoor & outdoor digital signage complete solution & mass production technoloy provider.
2.We have integrate more than 100 mature supply chain to provide ONE-STOP service for hardware & software development.
3.We having our own ERP system to control our factory’s procedures help us make sure of our delivery times and product quality. Over 12 years of experience gives us the edge!
4. We currently provide OEM/ODM services for many customers worldwide. R & D design and a large number of orders are our advantages. 5. We understand that our new partners need to order samples, in fact we encourage them to do so. Once you see the quality of our products, you will understand our professional strength. 6.Our years experiences made us faster and better, our teams are truly specialized, from our R & D department to our factory workers, everyone is key to our success.
Overview:
The intelligent industrial all-in-one board adopts Rockchip RK-PX30 quad-core chip solution and supports Android 8.0 system. Powerful computing power. Rich interface, enhanced power management circuit. Suitable for intelligent remote network control: industrial, medical, large advertising machines, educational video terminals and other equipment.
Characteristic:
- Support 7-inch to 84-inch LVDS interface display (point-to-point full HD display 1920*1080).
- Support EDP interface display
- Support MIPI interface display
- A variety of interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch
- Various network interfaces: Ethernet, Wireless Wifi, Bluetooth.
- Multi-channel USB interface, serial port
- Strong anti-electromagnetic interference and electromagnetic compatibility
Basic hardware specifications:
| CPU |
Rockchip RK-PX30 Quad-core Cortex-A35 Mali-G31 MP2 GPU |
| Frequency |
1.5GHz |
| RAM |
DDR3 1G/2G Optional (Lable 1GB) |
| ROM |
EMMC 8GB/16G/32G/64G Optional(Lable 8GB) |
| Display interface |
LVDS interface (single, 6-bit dual, 8-bit dual). Support maximum resolution 1920x1080, support 7"-84" display |
| EDP Interface |
| MIPI Interface |
| Screen voltage |
3.3V/5V/12V optional |
| Touch Screen |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).
Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.
|
| Internet |
With RJ45 interface, support 10/100 Ethernet. |
| Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 (option WIFI 802.11 a/b/g/n/ac 5G&2.4G) |
| Image rotation |
Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function |
| Real Time Clock |
External real-time clock power supply battery |
| Interfaces |
Support MIPI interface camera, up to 500W pixels |
| 3 USB HOST (secondary board), support usb camera @500W usb printer, U disk, mouse, keyboard, standard USB peripherals) |
| 3 groups of serial ports. Support external serial port device module (3G module, NFC module, printer, card reader, etc.) |
| SD card, maximum support 32GB |
| Class D power amplifier: 3W*2 8 ohms, support microphone |
| Audio |
MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP格式 |
| Video |
Support 4K 60fps H.265,H.264,VC-1, MPEG-1/2/4, VP8 video decoding; support 1080P H.265/VP8 video encoding |
| Image |
Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Adapter |
Input:AC100-240V.50-60HZ, Output: DC12V /3A |
Basic Software specifications:
| OS |
Google Android 8.1 |
| Basic software functions |
Web browsing, web chat, e-mail, e-books, and resource managers |
| Sound mode |
Clock, alarm clock, calculator, recording |
| Language |
Multi language |
| Recording |
Support MP3, WMA, 3gpp, Amr, etc., the system comes with an Amr format |
| Tools |
Calendar |
| Alarm Clock |
| Calculator |
| Note |
| Weather Clock |
| Recording |
| Document |
EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book |
PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule |
Calendar |
| Input methods |
Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet |
Browser -Chrome Lite |
| Email |
| Gmail |
| System Management |
APK Installer |
| Original eco-Android system, open root privileges, can be customized product development |
| Real-time remote monitoring, system crash recovery automatically, 7 * 24 hours unattended |
| Support OTA remote upgrade |
| System setting |
| Google Maps |
| Global time |
Pcking and Shipment
1.Packing: carton box or wood case
2.Payment methods: accept T/T,Western Union,Paypal and Cash.
3.RMA Policy: customer bear all the freight and duty charge to factory,and the factory afford return freight charge. 4.Warranty: 12 months warranty. Paid maintenance over 12 months.
5.Remark: ROHS, CE & FCC certificates in e-file format are available. 6.MOQ: 1pc, sample order are welcome for your evaluation.
